Alan Pape Ebbtide 36 Steel Cutter Ocean Cruiser

Loa 38ft inc bathing platform
Lwl  29.5ft /9m
Beam 11.15ft /3.4m
Draft  5.8ft / 1.7m
Displacement 12t

Designer: Alan Pape      Builder: Oceancraft,  Cornwall, UK
Year built:1984        Material: Steel

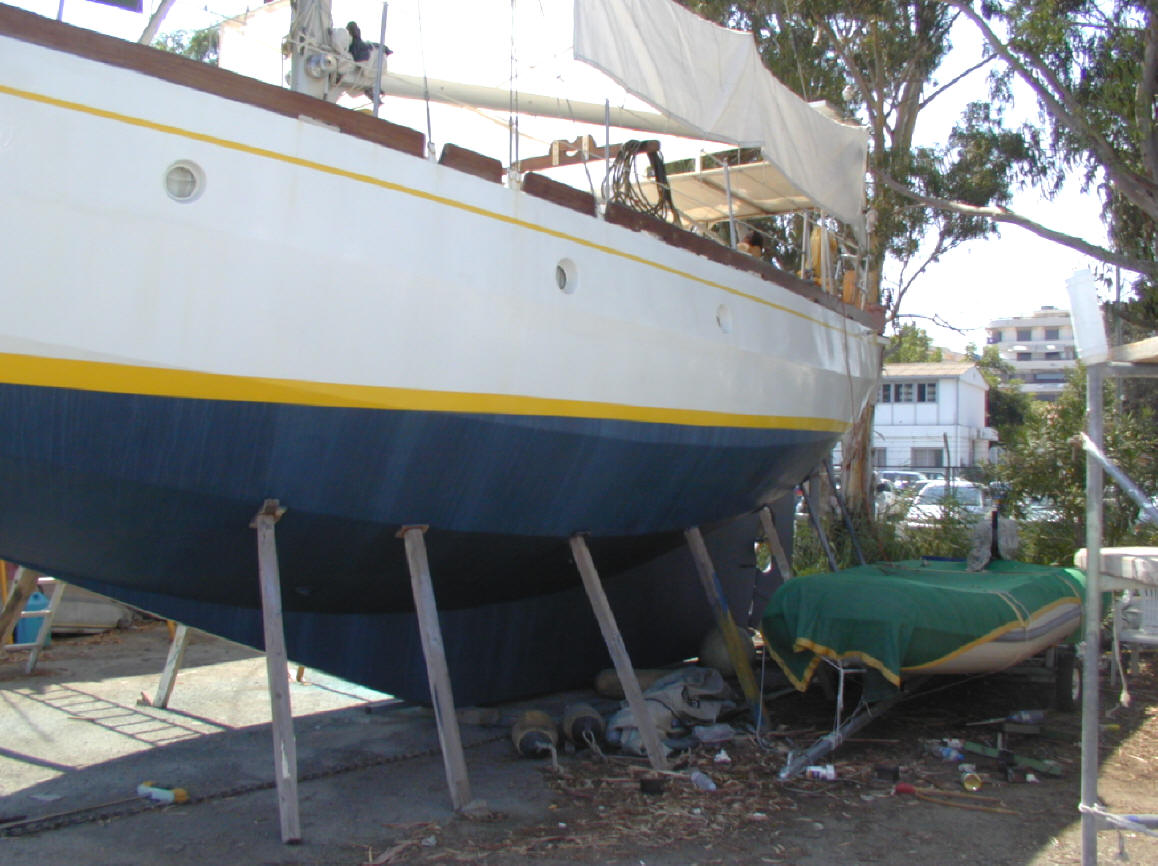

HULL: Long keel multichine with transom hung rudder and largely flush deck.  Material:  Steel to Lloyds tested Grade A.   Grit blasted to Swedish standard S.A. 3 and hot metal sprayed with zinc overcoated with aluminium by the Metco process.   One coat of etching primer followed by three coats of epoxide resin compound,  The weld areas only were filled with epoxide filler  followed by further coats of resin until the required thickness was reached as measured by a dry paint film thickness gauge.

RIG:   True Cutter  (rather than cutter headed sloop).   Proctor custom built aluminium mast with jumper struts, thus allowing the use of the staysail without the drudgery of runners.   S/S rigging with Norseman fittings throughout.    Dynafurl  roller furler on headstay with double grooves for running sails. Twin running booms.

SAILS:   Furling 135% Genoa. : excellent
working gib : very good
cruising chute: excellent
staysail.: very good
storm staysail.: very good
mainsail.: excellent
storm trisail.: very good

ENGINE:   BUKH  DV 36 ME     36 h.p.

INSTRUMENTS:   Sestrel Moore compass, Freiberg/Zeis sextant, Garmin 128 fixed GPS (2000), Furuno 1621 Radar, ICS Fax 2 weather fax, barograph, B&G Hornet 4 wind and log plus repeater, B&G Hecta depth sounder plus repeater, Raytheon ST4000 autohelm (2002), Hydrovane windpilot plus spares kit.

SAFETY EQUIPMENT:

Icom ICM501 Euro (2001)
SSB Kenwood TS-440S plus antenna tuner
Eurovinyl 6 man ocean liferaft
in date flare pack
waterproof halogen lantern
rech. halogen lantern
Tilley storm light
Powder and foam fire ext for every compartment plus spares
3 x co2 l/jackets
3 x crewsaver harnesses and straps
jackstay
2 x paracute sea anchors
MOB recovery harness
horseshoe lifering
2 x Henderson bilge pumps (galley and cockpit mount)
1 x electric sump pump plus spare

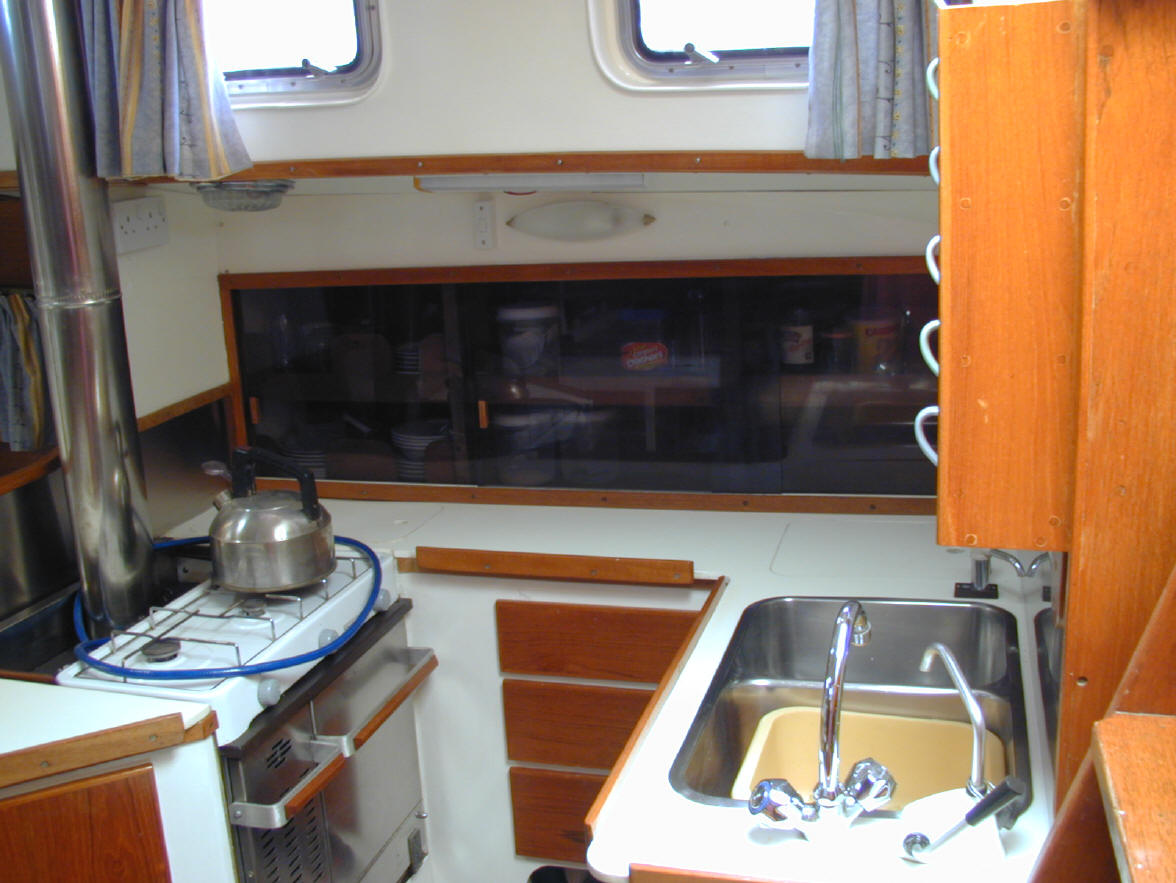

Dickinson Pacific diesel cooker pus heating coil
3 burner gas hob
RM69 sealock head (2002)
Lofrans electric windlass
Isotherm engine driven refridge. system (new compressor 2002)
Engel 12/240 v portable fridge
TWC 2 battery management system
Lazyjacks (2002)
New running rigging (2003)
2 x 45 lb CQR
1 x 25 lb CQR
numerous spare halyards, ropes etc
spare rigging fittings
Genius 300 watt invertor (2002)
TEAC stereo system
shorepower with ECB
benchdrill
600 watt petrol generator
calorifier (2002)
holding tank with macerator (Jabsco)
boarding ladder with platform
Derick
hot and cold pumped water (2002)
auto drain greywater tank (2002)
hand pump faucets
Bimini
sun awning (2003)
cockpit dodger (2002)
sail covers (2002)
8 x new fenders
Dynafurl roller reefing
slab main rigging (with all necessary fittings, organizers etc to lead aft if wanted)
Lewmar deck hatches with new seals.
new Vetus doghouse polished ali portlights (2003)
Cockpit table
New treadmaster decking (2003)
2 x solar panels

Click to enlarge

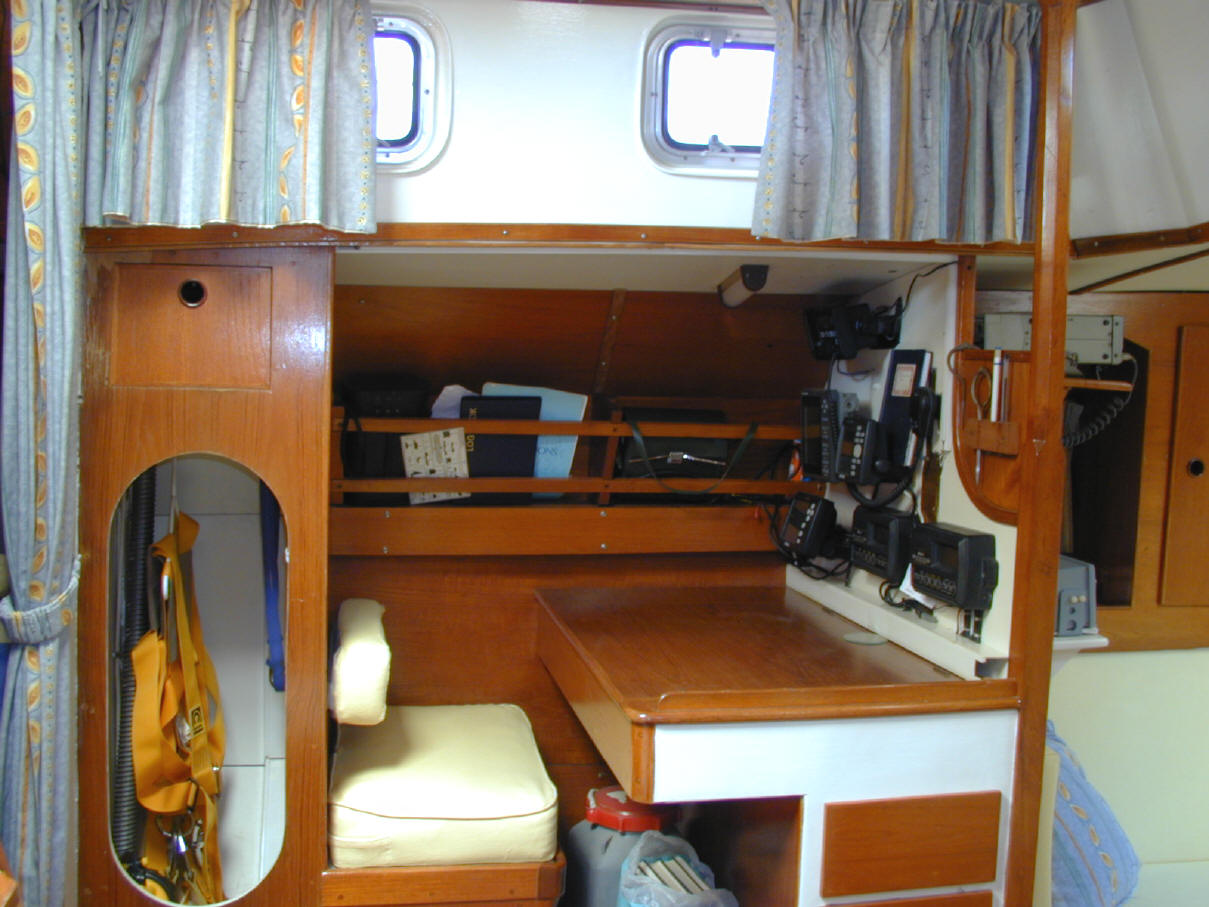

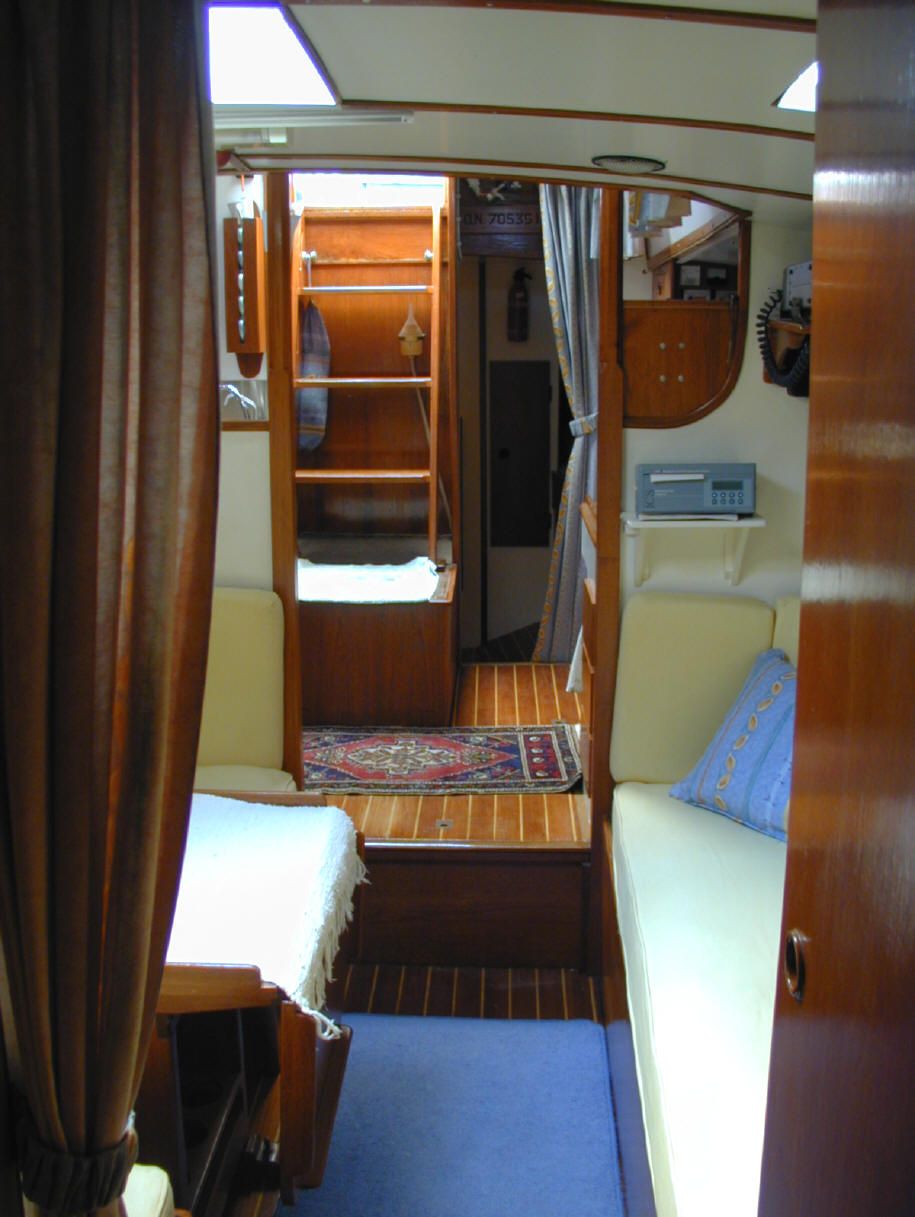

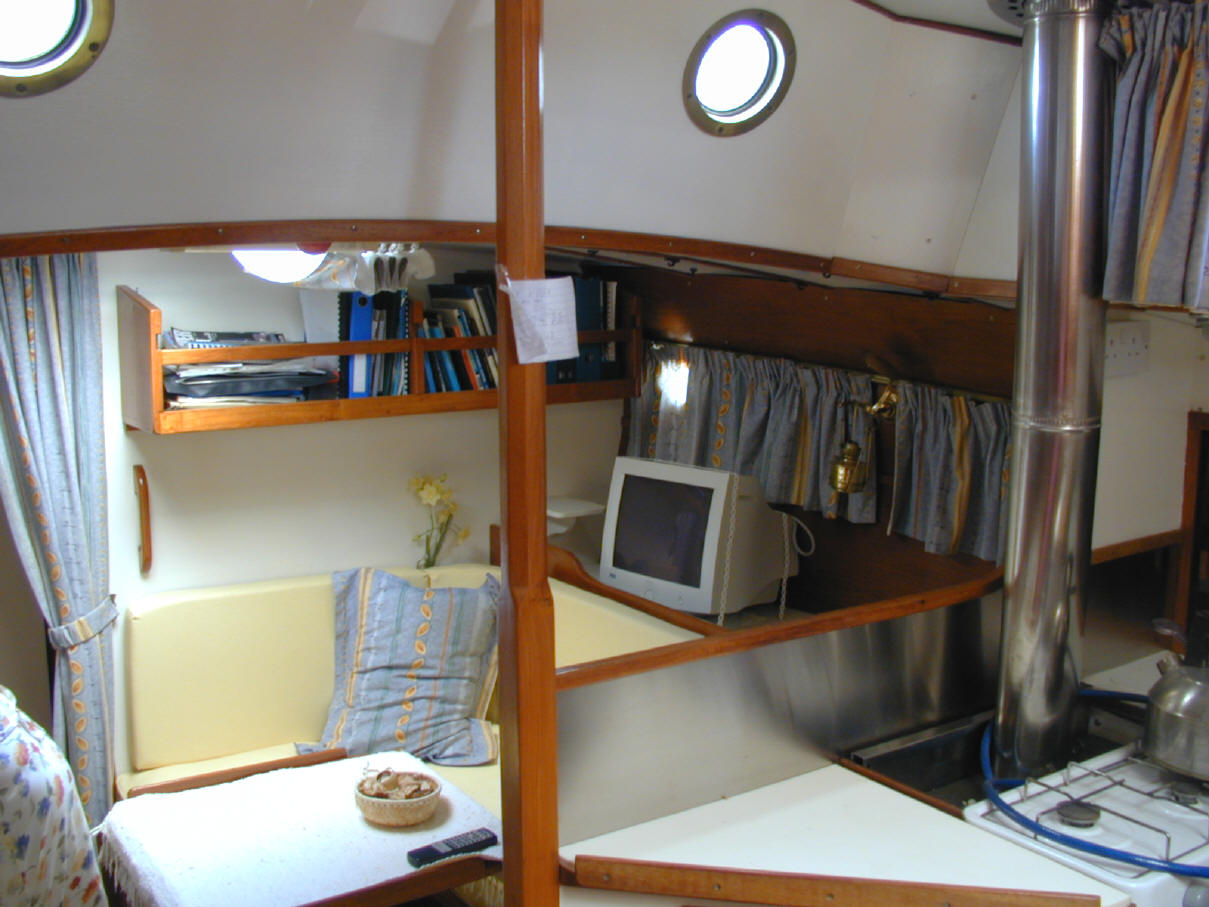

 ACCOMMODATION:-

Andrew’s Opinion:- (Personal Opinion)

The hull and rig appear to be in very good order.  The engine,  electrics and plumbing look well installed and meticulously cared for. There is considerable documentation on replacements and servicing.

Equipment in general is of the highest quality, from the B&G instruments to the Rolls-Royce of cookers.

With her heavy displacement  the hull is very voluminous allowing for considerable stowage.   The spacious feeling of the accommodation, with the exception of the aft cabin, is remarkable for a vessel of her length and type.

This is a well equipped and thought out cruising boat (to some like myself, a gem) quality built for strength and low maintenance.

Owners Comments : Built to a very high standard and has recently been significantly updated and maintained. She is a very comfortable sea boat and very roomy, bright and airy. She has had all new upholstery and mattresses. She is surprisingly nimble under sail and goes well to windward. She is tiller steered with the option of the wind or autopilots. This yacht will take you anywhere in comfort and safety and is in all respects ready to go.



Click pictures to enlarge
Click pictures to enlarge

To enquire further please E-mail us here.
